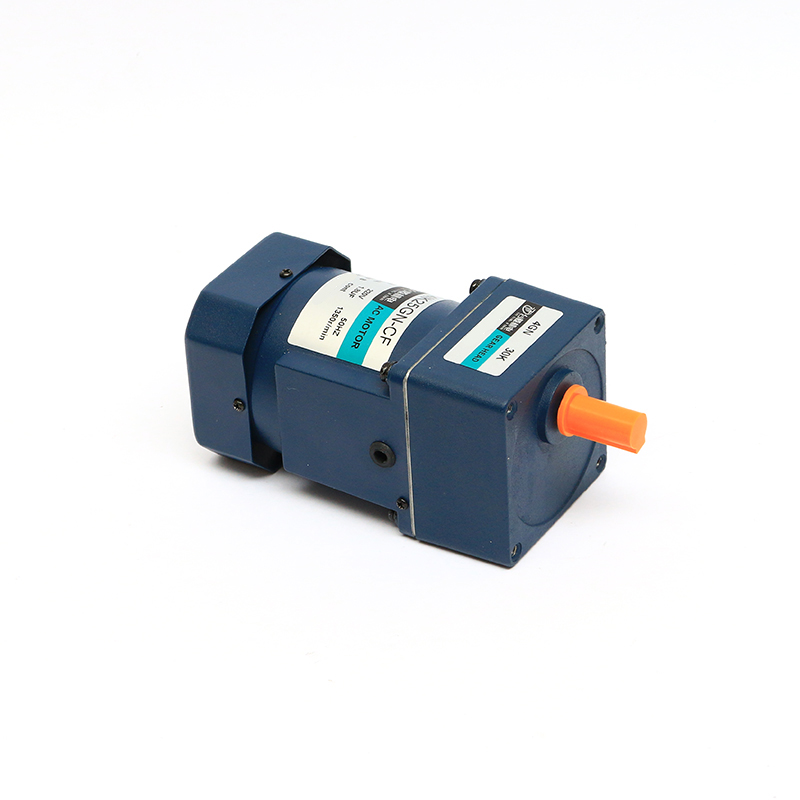

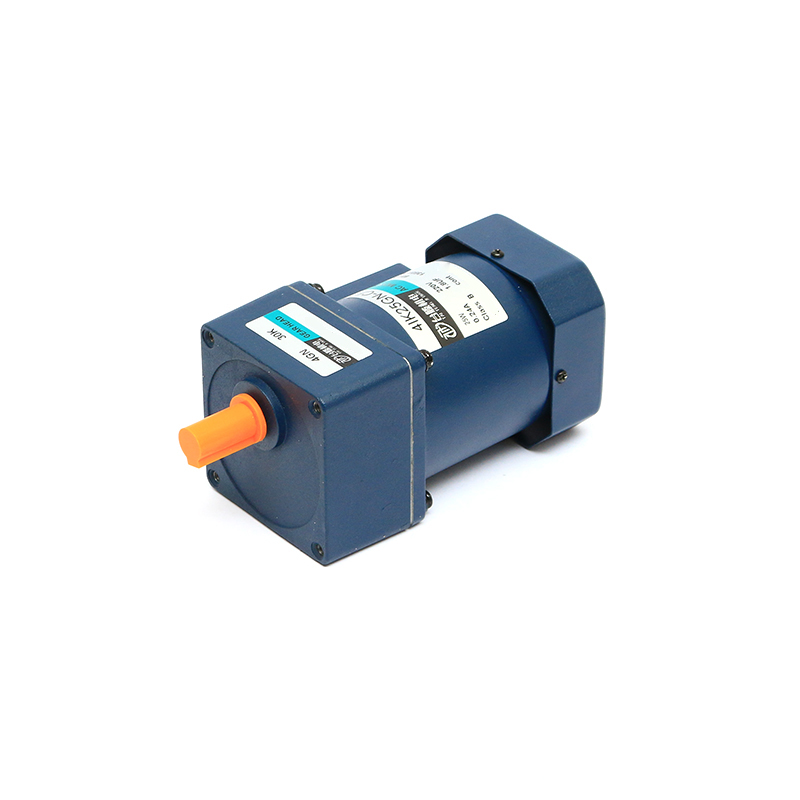

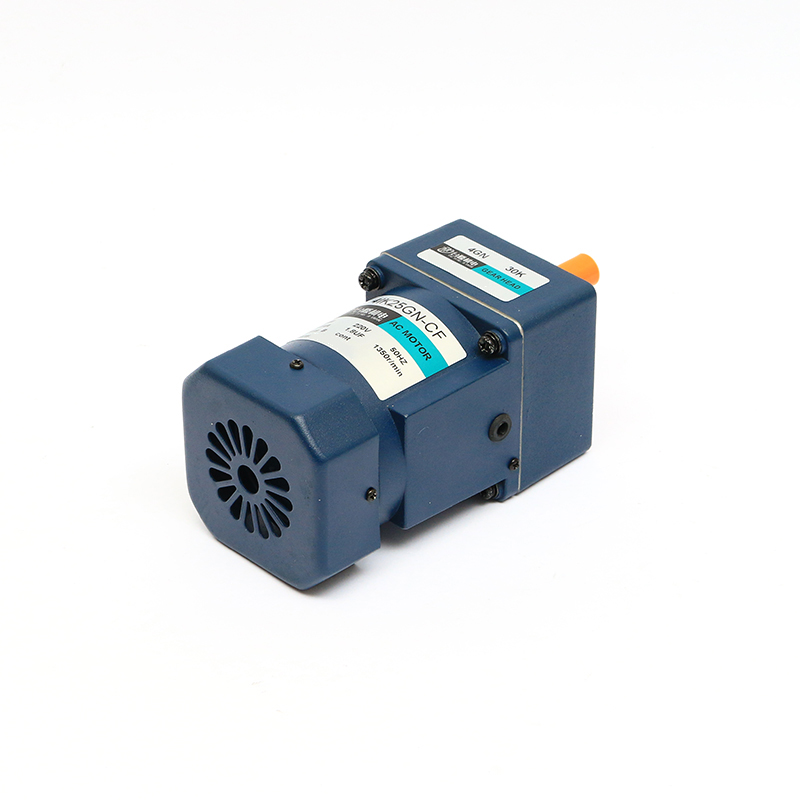

4IK電機系列
|
電機型號 Motor Model |
輸出功率 Outout Power |
電壓 Voltage |
頻率 Frequenc |
電流 Current |
額定轉速 Rated Speed |
額定轉矩 Rated Torque |
啟動轉矩 Starting Torque |
運行電容 Capacitor |
|
|
齒輪軸型 Pinion Shaft |
圓軸型 Round Shsft |
W | V | Hz | A | r/min | MN.M | MN.M | UF/AC |
| 4IK25GN-C | 4IK25A-C | 25 | 1ph220 | 50 | 0.24 | 1250 | 184 | 165 | 1.8/450 |
| 60 | 0.24 | 1550 | 149 | 168 | |||||
| 4IK25GN-A | 4IK25A-A | 25 | 1ph110 | 50 | 0.54 | 1250 | 201 | 144 | 7.0/250 |
| 6o | 0.5 | 1550 | 152 | 154 | |||||
| 4IK25GN-S | 4IK25A-S | 25 | 3ph220 | 50 | 0.26 | 1250 | 181 | 543 | / |
| 60 | 0.21 | 1550 | 150 | 389 | |||||
| 4IK25GN-S3 | 4IK25A-S3 | 25 | 3ph380 | 50 | 0.15 | 1250 | 182 | 556 | / |
| 60 | 0.12 | 1550 | 149 | 400 | |||||
減速箱減速比/性能對照表 Gear Reductio/Performance Comparison
|
減速比 Gear Ratio |
3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 50Hz |
轉速 Speed r/min |
450 | 375 | 270 | 225 | 180 | 120 | 135 | 108 | 90 | 75 | 67.5 | 54 | 45 | 37.5 | 33.7 | 27 | 22.5 | 18 | 15 | 13.5 | 11 | 9 | 7.5 | 6.75 |
|
轉矩 Torque N.M |
0.45 | 0.54 | 0.75 | 0.9 | 1.12 | 1.35 | 1.5 | 1.87 | 2.25 | 2.69 | 2.99 | 3.37 | 4.04 | 4.85 | 5.39 | 6.74 | 7.27 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 60Hz |
轉速 Speed r/min |
516 | 430 | 310 | 258 | 206 | 172 | 155 | 124 | 103 | 86 | 77.5 | 62 | 51.6 | 443 | 38.75 | 31 | 25.8 | 20.6 | 17.2 | 15.5 | 12.9 | 10.3 | 8.6 | 7.77 |
|
轉矩 Torque N.M |
0.36 | 0.44 | 0.61 | 0.73 | 0.91 | 1.09 | 1.21 | 1.52 | `.82 | 2.18 | 2.43 | 2.73 | 3.27 | 3.93 | 4.37 | 5.46 | 6.55 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
