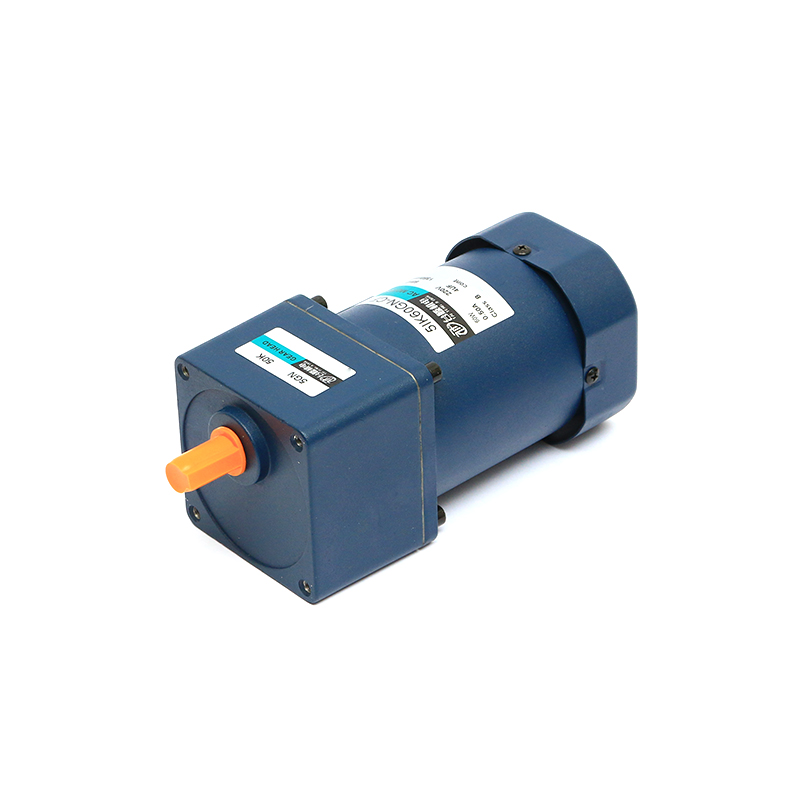

5IK系列 60W
|
電機型號 Motor Model |
輸出功率 Outout Power |
電壓 Voltage |
頻率 Frequenc |
電流 Current |
額定轉速 Rated Speed |
額定轉矩 Rated Torque |
啟動轉矩 Starting Torque |
運行電容 Capacitor |
|
|
齒輪軸型 Pinion Shaft |
圓軸型 Round Shsft |
W | V | Hz | A | r/min | MN.M | MN.M | UF/AC |
| 5IK60GU-CF | 5IK60A-CF | 60 | 1ph220 | 50 | 0.5 | 1350 | 427 | 384 | 4.0/450 |
| 60 | 0.54 | 1550 | 353 | 384 | |||||
| 5IK60GU-AF | 5IK60A-AF | 60 | 1ph110 | 50 | 0.19 | 1350 | 431 | 349 | 15.0/250 |
| 60 | 1.01 | 1550 | 355 | 360 | |||||
| 5IK60GU-SF | 5IK60A-AF | 60 | 3ph220 | 50 | 0.38 | 1350 | 465 | 1110 | / |
| 60 | 0.35 | 1550 | 390 | 840 | |||||
| 5IK60GU-S3F | 5IK60A-S3F | 69 | 3ph380 | 50 | 0.22 | 1350 | 464 | 1080 | / |
| 60 | 0.20 | 1550 | 390 | 837 | |||||
減速箱減速比/性能對照表 Gear Reductio/Performance Comparison
|
減速比 Gear Ratio |
3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 50Hz |
轉速 Speed r/min |
450 | 375 | 270 | 225 | 180 | 120 | 135 | 108 | 90 | 75 | 67.5 | 54 | 45 | 37.5 | 33.7 | 27 | 22.5 | 18 | 15 | 13.5 | 11 | 9 | 7.5 | 6.75 |
|
轉矩 Torque N.M |
0.99 | 1.18 | 1.64 | 1.97 | 2.47 | 2.96 | 2.96 | 3.7 | 4.44 | 5.33 | 5.33 | 6.66 | 7.99 | 9.59 | 10.66 | 13.32 | 15.98 | 19.98 | 20 | 20 | 20 | 20 | 20 | 20 | |
| 60Hz |
轉速 Speed r/min |
516 | 430 | 310 | 258 | 206 | 172 | 155 | 124 | 103 | 86 | 77.5 | 62 | 51.6 | 443 | 38.75 | 31 | 25.8 | 20.6 | 17.2 | 15.5 | 12.9 | 10.3 | 8.6 | 7.77 |
|
轉矩 Torque N.M |
0.86 | 1.03 | 1.43 | 1.72 | 2.14 | 2.57 | 2.86 | 3.22 | 3.86 | 4.63 | 5.01 | 5.79 | 6.95 | 8.34 | 9.26 | 11.58 | 13.9 | 17.37 | 18.76 | 20 | 20 | 20 | 20 | 20 | |
