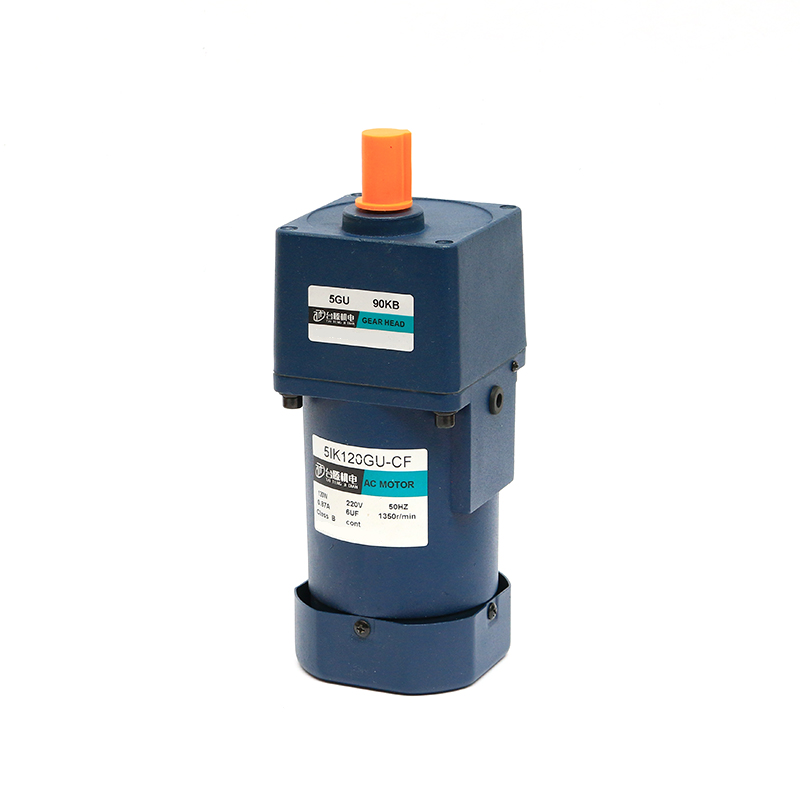

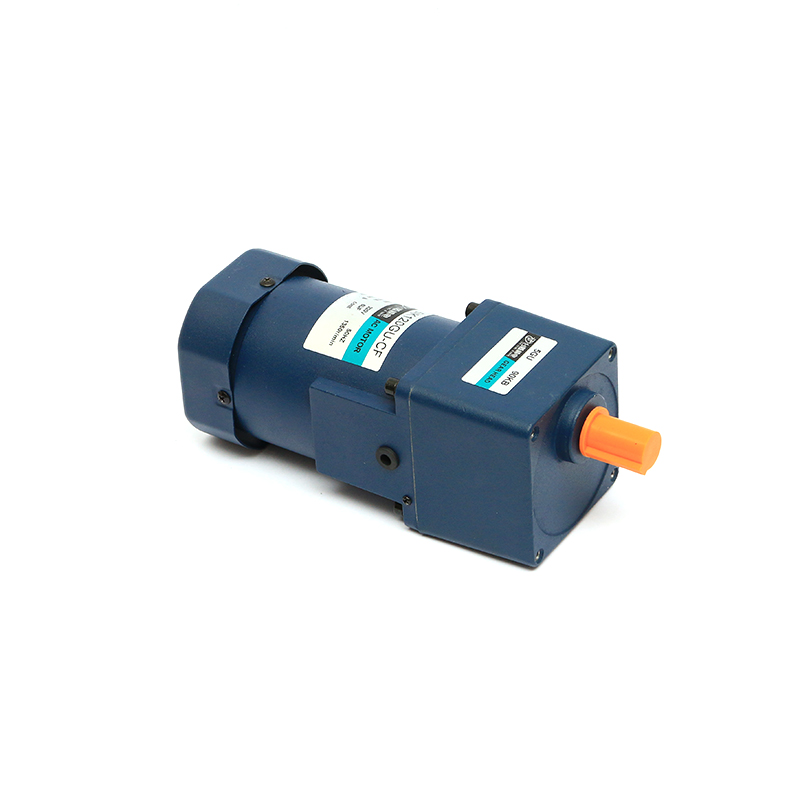

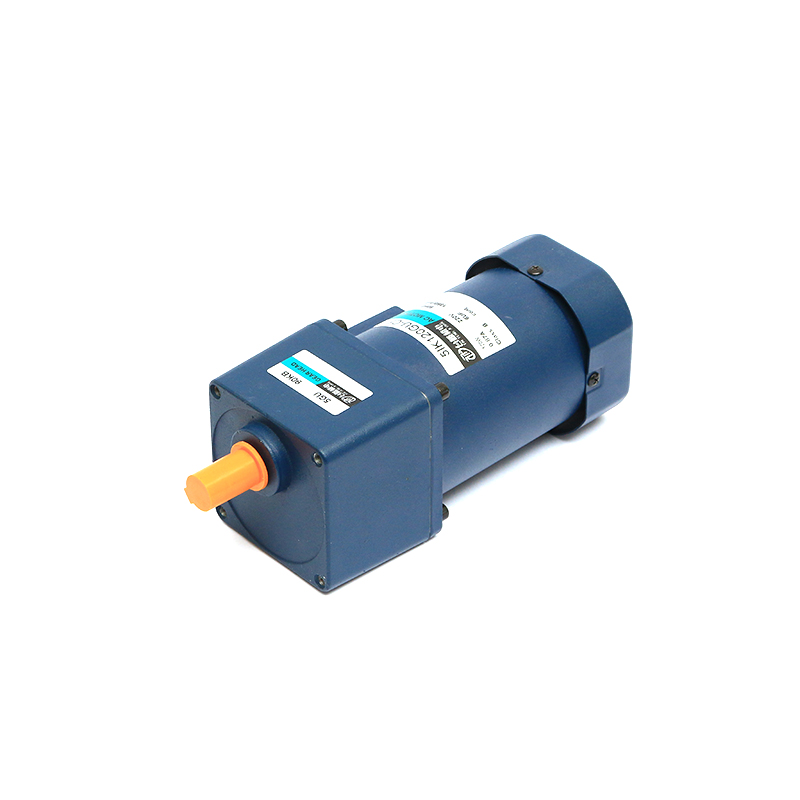

5IK系列 120W
|
電機型號 Motor Model |
輸出功率 Outout Power |
電壓 Voltage |
頻率 Frequenc |
電流 Current |
額定轉速 Rated Speed |
額定轉矩 Rated Torque |
啟動轉矩 Starting Torque |
運行電容 Capacitor |
|
|
齒輪軸型 Pinion Shaft |
圓軸型 Round Shsft |
W | V | Hz | A | r/min | MN.M | MN.M | UF/AC |
| 5IK120GU-CF | 5IK120A-CF | 120 | 1ph220 | 50 | 0.87 | 1350 | 874 | 663 | 6.0/450 |
| 60 | 0.9 | 1550 | 709 | 655 | |||||
| 5IK120GU-AF | 5IK120A-AF | 120 | 1ph110 | 50 | 1.79 | 1350 | 919 | 500 | 25.0/250 |
| 60 | 1.65 | 1550 | 740 | 524 | |||||
| 5IK120GU-SF | 5IK120A-AF | 120 | 3ph220 | 50 | 0.81 | 1350 | 879 | 2800 | / |
| 60 | 0.7 | 1550 | 735 | 2150 | |||||
| 5IK120GU-S3F | 5IK120A-S3F | 120 | 3ph380 | 50 | 0.46 | 1350 | 879 | 2660 | / |
| 60 | 0.40 | 1550 | 731 | 2030 | |||||
減速箱減速比/性能對照表 Gear Reductio/Performance Comparison
|
減速比 Gear Ratio |
3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 50Hz |
轉速 Speed r/min |
450 | 375 | 270 | 225 | 180 | 120 | 135 | 108 | 90 | 75 | 67.5 | 54 | 45 | 37.5 | 33.7 | 27 | 22.5 | 18 | 15 | 13.5 | 11 | 9 | 7.5 | 6.75 |
|
轉矩 Torque N.M |
2.12 | 2.55 | 3.54 | 4.25 | 5.31 | 6.37 | 6.9 | 7.96 | 9.56 | 11.47 | 12 | 14.36 | 17.2 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| 60Hz |
轉速 Speed r/min |
516 | 430 | 310 | 258 | 206 | 172 | 155 | 124 | 103 | 86 | 77.5 | 62 | 51.6 | 443 | 38.75 | 31 | 25.8 | 20.6 | 17.2 | 15.5 | 12.9 | 10.3 | 8.6 | 7.77 |
|
轉矩 Torque N.M |
1.72 | 2.07 | 2.87 | 3.45 | 4.31 | 5.17 | 5.8 | 6.46 | 7.75 | 9.3 | 9.9 | 11.63 | 13.96 | 16.75 | 18.61 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
